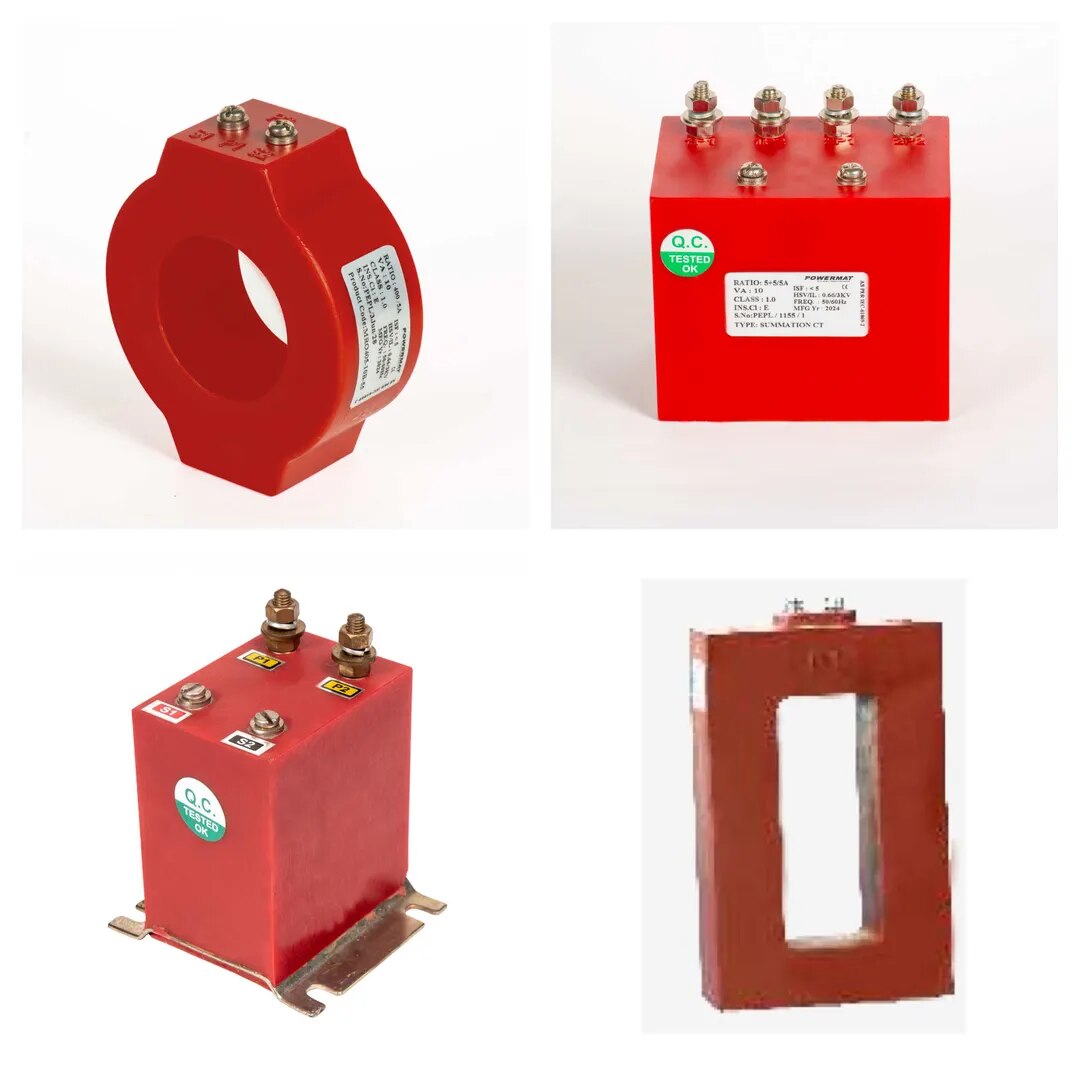

22 kV Current Transformer (CT)
Description
The 22 kV Current Transformer (CT) is a high-performance medium-voltage instrument transformer designed for accurate current measurement, protection, and metering in electrical distribution systems. It is widely used in substations, power utilities, industrial plants, renewable energy projects, and commercial power networks operating up to 22 kV.
Manufactured using high-quality insulation materials and precision-engineered cores, the 22 kV CT ensures excellent measurement accuracy, thermal stability, and reliable performance under demanding operating conditions. It safely converts high primary currents into standardized secondary currents (1A or 5A), allowing protective relays, meters, and monitoring equipment to operate efficiently while maintaining electrical isolation.
Designed to comply with IS and IEC standards, the transformer offers low maintenance, high dielectric strength, and long service life. Its robust construction and weather-resistant design make it suitable for both indoor and outdoor installations, ensuring dependable operation in harsh environments.
Specifications
Specification Details
Product Name 22 kV Current Transformer (CT)
Rated Voltage 22 kV
Frequency 50 Hz
Secondary Current 1A / 5A
Primary Current As per application (50A–2000A)
Accuracy Class 0.2, 0.5, 1.0, 5P, 10P
Insulation Level IS/IEC Standard
Mounting Type Indoor / Outdoor
Core Type Metering / Protection / Dual Core
Standards IS 2705 / IEC 61869
Application Metering, Protection & Power Distribution
Key Features
Suitable for medium-voltage systems up to 22 kV.
High accuracy for metering and protection applications.
Excellent insulation and dielectric strength.
Reliable performance under varying load conditions.
Low maintenance and long operational life.
Available in metering, protection, and dual-core configurations.
Weather-resistant construction for indoor and outdoor installations.
High thermal and dynamic current withstand capability.
Complies with IS and IEC quality standards.
Ideal for substations, industrial plants, utility networks, renewable energy, and commercial power distribution systems.
