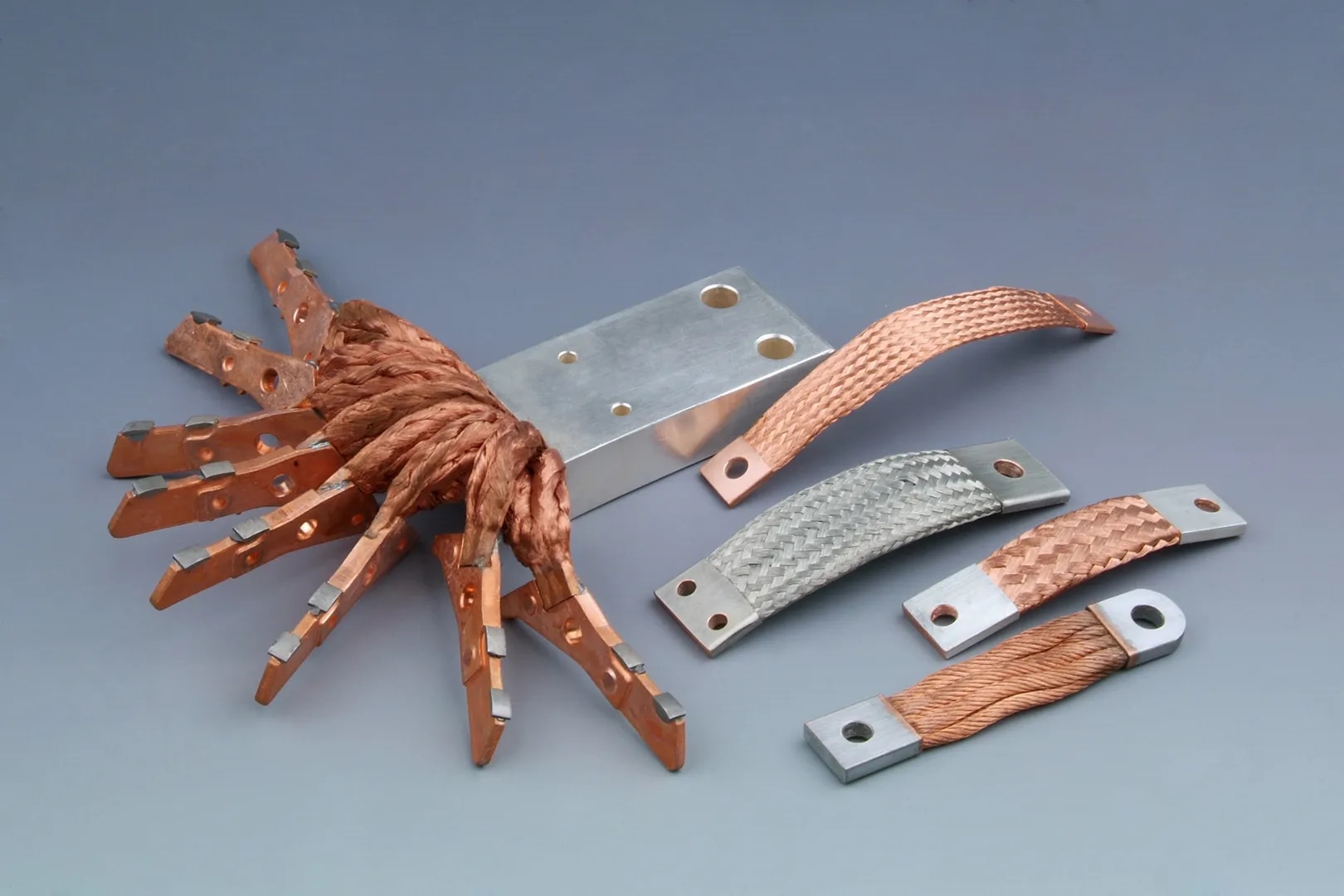

Braid Flexible Connectors

Braid Flexible Connectors from Deeva Electricals are manufactured using high-conductivity electrolytic copper braids to provide flexible, low-resistance electrical connections in power distribution systems. Designed to absorb vibration, thermal expansion, and equipment movement, these connectors ensure reliable current transfer while reducing mechanical stress on electrical components. Available in bare copper and tin-plated finishes, they are widely used in switchgear, transformers, busbars, control panels, generators, and earthing systems for long-lasting, maintenance-free performance.

Specifications

Parameter Details

Product Name Braid Flexible Connector

Material Electrolytic Grade Copper (99.9% Pure)

Type Copper Braided Flexible Connector

Surface Finish Bare Copper / Tin-Plated Copper

Cross Section 10 sq.mm to 1000 sq.mm

Current Rating Up to 5000 Amps (Depending on Size)

Terminal Type Crimped or Welded Copper Lugs

Length Customizable

Operating Temperature -40°C to +105°C

Applications Switchgear, Busbars, Transformers, Panels, Generators, Earthing Systems

Features High Conductivity, Flexible, Corrosion Resistant, Low Maintenance
