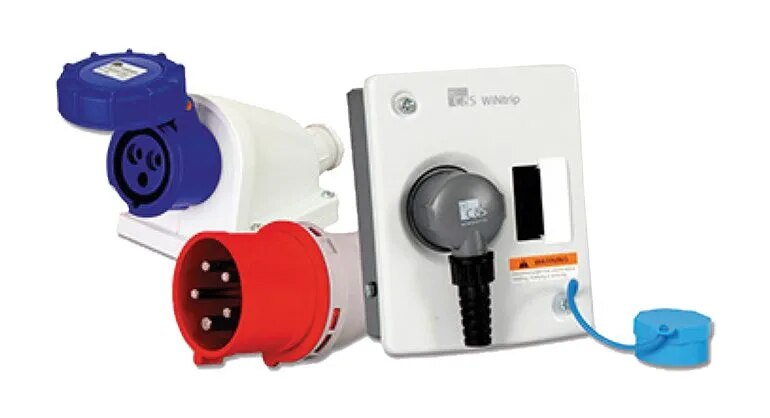

Industrial Plug and Socket systems

Industrial Plug and Socket systems are designed to provide safe, secure, and reliable electrical connections for industrial, commercial, and outdoor power distribution applications. Manufactured from premium-quality flame-retardant engineering thermoplastic, these connectors offer exceptional mechanical strength, impact resistance, and long service life. Equipped with high-conductivity brass contacts, they ensure efficient power transmission with minimal energy loss. Available in multiple current ratings, voltage configurations, and pin arrangements, these industrial connectors are suitable for single-phase and three-phase power systems. Their robust locking mechanism and protective covers prevent accidental disconnection while providing superior protection against dust, moisture, and harsh environmental conditions. Complying with IEC 60309 international standards, industrial plugs and sockets are widely used in factories, construction sites, generators, power distribution systems, mining, marine applications, event management, and heavy-duty industrial machinery. Their color-coded design allows quick identification of voltage ratings, ensuring safe and error-free electrical installations.

Specifications

Product Type: Industrial Plug & Socket

Standard: IEC 60309 / CEE

Current Ratings: 16A, 32A, 63A, 125A

Voltage Ratings: 110V, 230V, 400V, 415V

Frequency: 50/60 Hz

Pin Configuration: 2, 3, 4 & 5 Pin

Phase Options: Single Phase and Three Phase

Housing Material: Flame-Retardant Engineering Thermoplastic

Contact Material: High-Conductivity Brass

Protection Rating: IP44 / IP67 (Model Dependent)

Mounting Types: Cable Mount, Panel Mount, Wall Mount, Surface Mount

Operating Temperature: -25°C to +55°C
