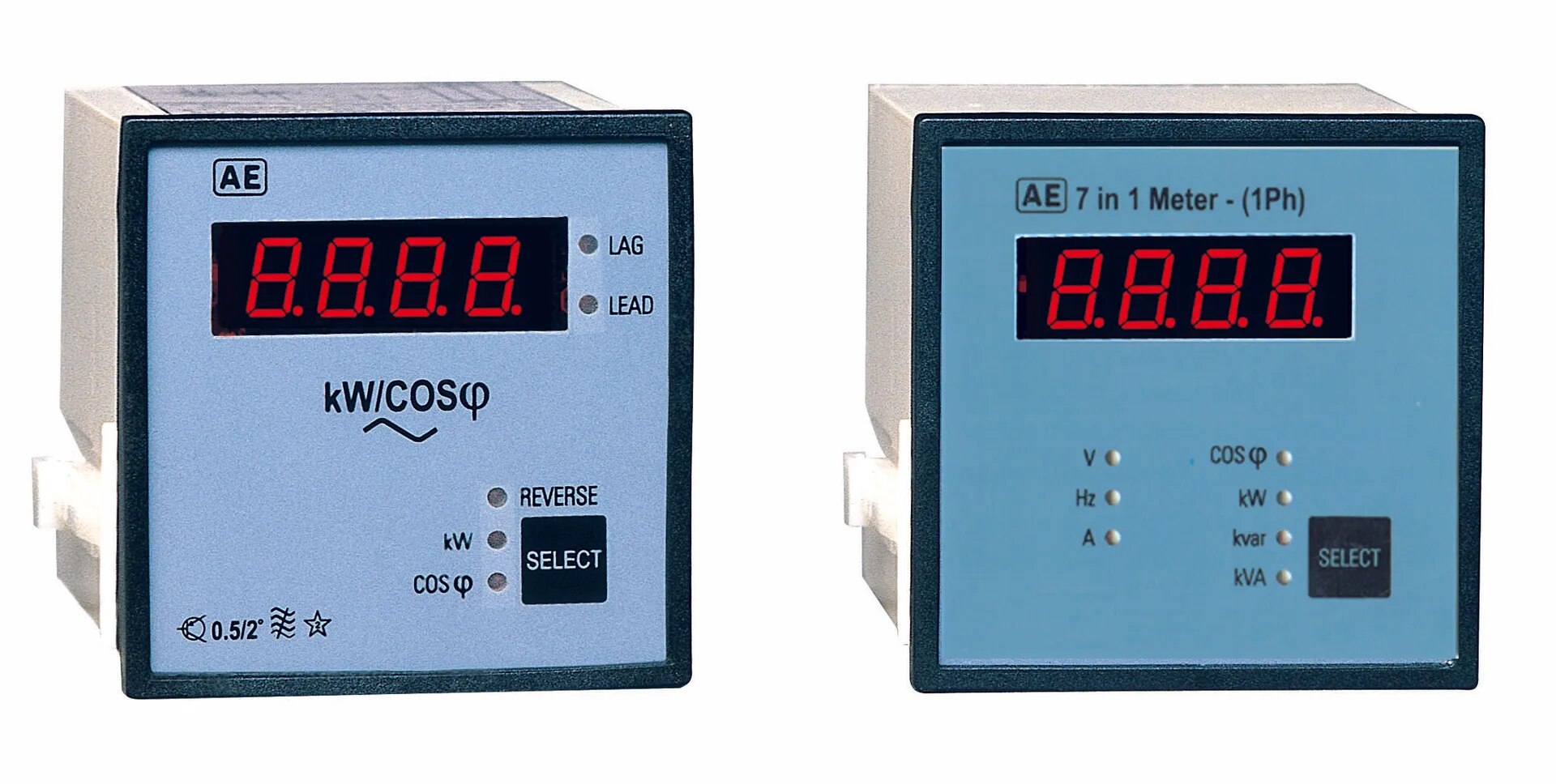

RMS Digital Meter

AE Brand RMS Digital Meters are precision-engineered electrical measuring instruments designed to provide accurate monitoring of voltage, current, frequency, power, energy, and other electrical parameters in industrial and commercial power systems. Featuring True RMS measurement technology, these meters deliver highly accurate readings even in the presence of harmonic distortion and non-linear loads. Built with advanced microprocessor-based technology, AE RMS Digital Meters offer reliable performance, a clear digital display, and easy integration into electrical panels, switchgear, generator panels, and power distribution systems. Their compact design, high accuracy, and maintenance-free operation make them an ideal solution for continuous electrical monitoring and energy management.

Specifications

Brand: AE

Product Type: True RMS Digital Meter

Display: Bright LCD/LED Digital Display

Measurement: True RMS

Voltage Range: 110V–500V AC

Current Input: 1A / 5A (via Current Transformer)

Frequency: 45–65 Hz

Accuracy Class: 0.5 / 1.0

Auxiliary Supply: 80–270V AC/DC

Communication: Optional RS-485 Modbus RTU

Mounting: Panel Mount

Operating Temperature: -10°C to +55°C

Standards: IEC 61010, CE Compliant
